Dispensing valves

In the modern manufacturing technology for dispensing liquids and pastes are used in a wide range. A valve – dispensing system basically consists of a metering valve, a material reservoir and a control unit.

Jet valve MDV3020A

The MDV 3020A is a high-speed jet valve with a highly efficient piezo actuator for the contactless dispensing of medium- to high-viscosity media of up to 2,000,000 mPas. The high-speed piezo technology accelerates the dispensing cycles and allows an extremely fast opening and closing of the valve of up to 3000 Hz. Thanks to the […]

Jet Valve MDV3200A

The MDV 3200A is a high-speed jet valve with a highly efficient piezo actuator for the contactless dispensing of medium- to high-viscosity media of up to 2,000,000 mPas. The high-speed piezo technology accelerates the dispensing cycles and allows an extremely fast opening and closing of the valve of up to 3000 Hz. Thanks to the […]

volume dispenser DV-8000

Compact volume valve model DV-8000 enables very precise and uniform volumetric dispensing with a wide range of materials. With the special rotor-stator geometry, a valve is not required to prevent the material to flow out on its own. Alternating opening chambers ensure gentle transport and pulsation-free dispensing application. The system is controlled via model VC1140-100 […]

screw valve DV-5005

Model DV- screw valve is designed to dispense medium to high viscosity materials. The valve uses a replaceable screw auger to dispense two-component materials as well as materials that are abrasive such as solder pastes, filled materials, and SMD adhesives. Three augers with different pitches are included with the valve. To operate the valve control […]

Screw valve left DV 5000

Model DV-5000DFS-L screw valve is designed to dispense medium to high viscosity materials. The valve uses a replaceable screw auger to dispense two-component materials as well as materials that are abrasive such as solder pastes, filled materials and SMD adhesives. Three augers with different pitches are included with the valve. To operate the valve control […]

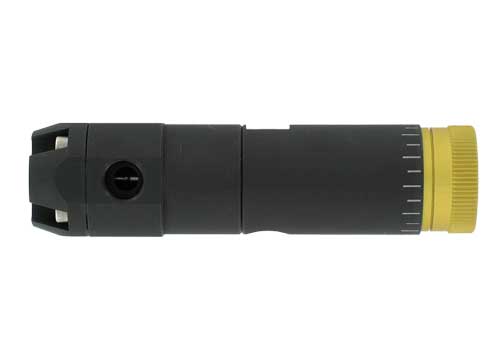

Mini Spool valve DV-5325

The Mini Spool valve DV-5325 is designed to very accurately dispense medium to high viscosity materials. The compact construction of this dispensing valve enables usage in automatic lines and in systems with limited space. The dispensing valve is pneumatically controlled. The reverse action closure of the valve provides “suck-back” effect, enabling improved positive “shear” of […]

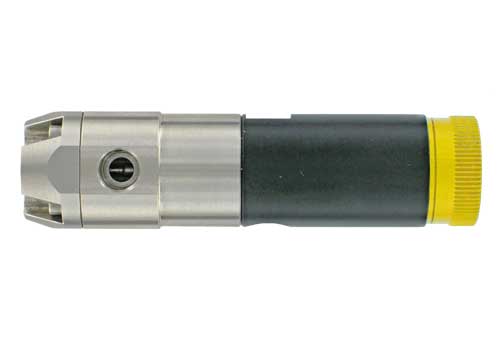

Mini Spool Valve DV-5325SS

The Mini Spool valve DV-5325SS is designed to very accurately dispense medium to high viscosity materials. The valve DV-5325SS has got valve body made of stainless steel (WNr. 1.4305, AISI 303). The compact construction of this dispensing valve enables usage in automatic lines and in systems with limited space. The dispensing valve is pneumatically controlled. […]

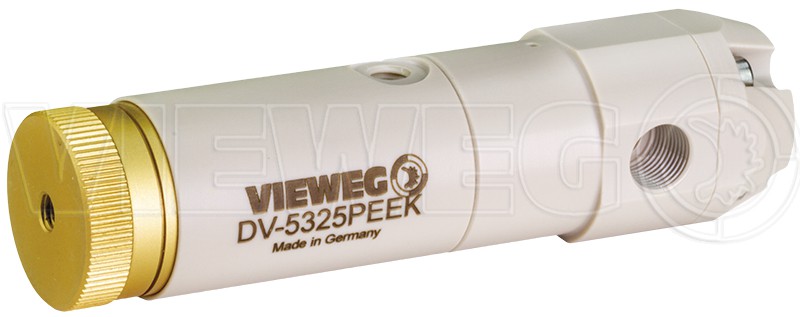

Mini Spool Valve DV-5325PEEK

The Mini Spool valve DV-5325PEEK is designed to very accurately dispense medium to high viscosity materials. The valve DV-5325PEEK has got valve body made of PEEK. The compact construction of this dispensing valve enables usage in automatic lines and in systems with limited space. The dispensing valve is pneumatically controlled. The reverse action closure of […]

needle valve DV-5425SS

The needle valve DV-5425SS  was especially developed for dispensing of low to medium viscosity materials. The valve body is made from stainless steel (WNr. 1.4305, AISI 303). The DV-5425SS needle valve enables control of material from extremely small individual shots to continuous beads. The needle dispensing valve is pneumatically controlled. The slim design allows for […]

needle valve DV-5425

The needle valve DV-5425 was especially developed for dispensing of low to medium viscosity materials. The DV-5425 needle valve enables control of material from extremely small individual shots to continuous beads. The needle dispensing valve is pneumatically controlled. The slim design allows for installation in automated lines and a high packing density. Functionality The valve […]
