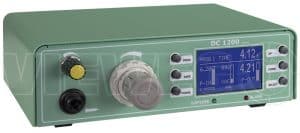

DC 1200 – Full Digital Dispenser
DC 1200
The DC 1200 series is the latest model in our dispenser series. We replaced the analog pressure gauge to provide all the data on the graphic display.The new digital display of the important dispensing information provides an excellent overview of all necessary data. It also has all the benefits and features which come with the […]
Description
The DC 1200 series is the latest model in our dispenser series. We replaced the analog pressure gauge to provide all the data on the graphic display.The new digital display of the important dispensing information provides an excellent overview of all necessary data. It also has all the benefits and features which come with the DC 1000 and DC 1100 series. Unit Features: Timer from 0,01 – 999 seconds I/O-Port Vacuum suck-back to avoid dripping Digital display with indication of all pressures Precision pressure compressed air regulator Stores up to 8 dispensing programs Cycle counter Wide range of applications
Technical Details
| Dimensions (WxHxD) | 235x220x75 mm |
| Operation | digital |
| I/O Port | 1 |
| Pressure regulator | 1 |
| Vacuum suck-back | 1 |
| Shipping weight | 3.5 kg |
| digital pressure display | 1 |
| digital vacuum display | 1 |
| large display | 1 |
| pressure monitoring | 1 |
| Weight | 1.3 kg |
| timer | 1 |
| Memory Capacity | 8 |
