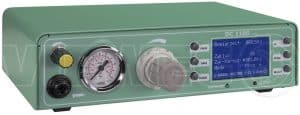

DC 1100 – Digital Dispenser
DC 1100
The DC 1100 series is almost the same as the DC 1000 series. It is suitable for all 3 – 55 cc barrels, as well as, larger cartridges with retainers.The DC 1100 series also displays the value set on the vacuum suck-back, which allows for improved documentation for quality assurance purposes and constant dispensing. Unit […]
Description
The DC 1100 series is almost the same as the DC 1000 series. It is suitable for all 3 – 55 cc barrels, as well as, larger cartridges with retainers.The DC 1100 series also displays the value set on the vacuum suck-back, which allows for improved documentation for quality assurance purposes and constant dispensing. Unit Features: Timer from 0,01 – 999 seconds I/O-Port Vacuum suck-back with indicated value Precision pressure compressed air regulator Stores up to 8 dispensing programs Digital display with pressure indicator Cycle counter Wide range of applications.
Technical Details
| Dimensions (WxHxD) | 260x210x75 mm |
| Operation | digital |
| I/O Port | 1 |
| Pressure regulator | 1 |
| Vacuum suck-back | 1 |
| Shipping weight | 3.32 kg |
| digital pressure display | 1 |
| digital vacuum display | 1 |
| large display | 1 |
| pressure monitoring | 1 |
| Weight | 1.45 kg |
| timer | 1 |
| Memory Capacity | 8 |
