DC 150 Dispenser without timer
DC 150
Model DC 150 is recommended for manually timed dispensing applications which do not require a timer control. The dispensing process is activated by pressing the foot pedal. This model is more cost effective than the devices equipped with timers and ensures continuous dispensing processes with the same high quality. It is suitable for a wide […]
Description

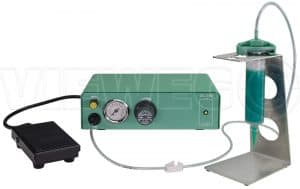

Model DC 150 is recommended for manually timed dispensing applications which do not require a timer control.

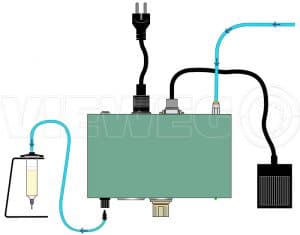

The dispensing process is activated by pressing the foot pedal. This model is more cost effective than the devices equipped with timers and ensures continuous dispensing processes with the same high quality.
It is suitable for a wide range of materials. The DC 150 is equipped with a vacuum suck-back feature to prevent dripping of low viscosity materials.
Technical Details
| Dimensions (WxHxD) | 230x75x215 mm |
| Operation | analog |
| I/O Port | nein |
| Pressure regulator | Standard |
| Weight | 1.2 kg |
| Shipping weight | 3.1 kg |
| Timer | nein |
| Memory Capacity | nein |
| Vacuum suck-back | ja |
| Dispensing pressure | 0,1 – 7 bar |
